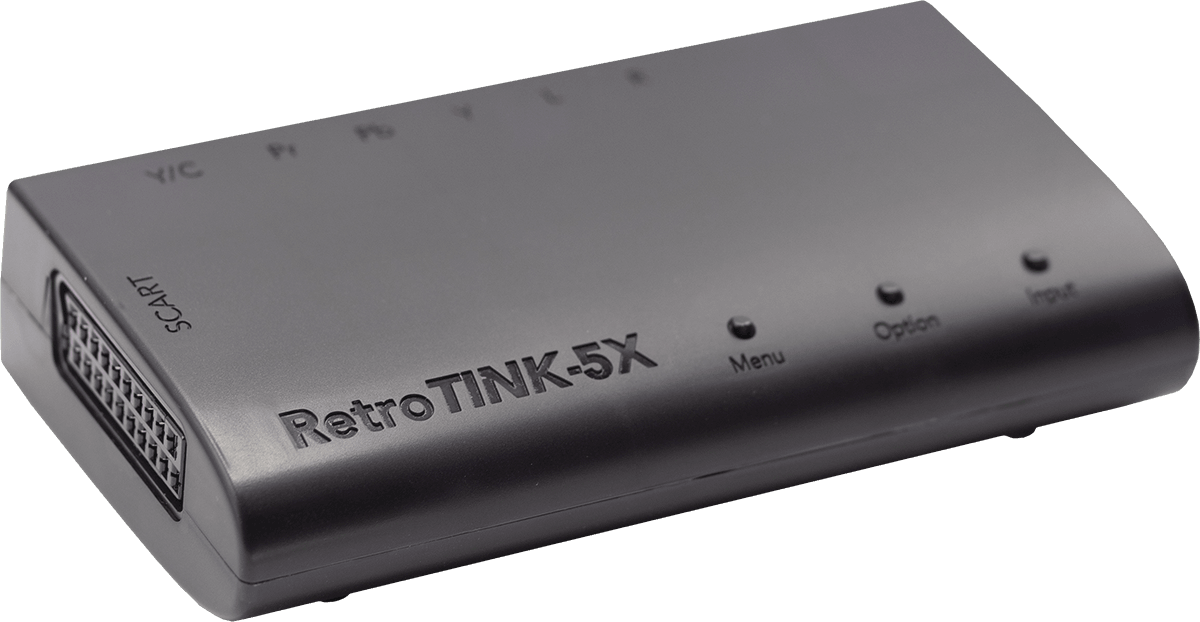

RetroTINK-5X Pro Upscaler - Black (New)

Rating: Not Rated Yet
Availability:out of stock 0 item(s)
Product Code:1000322518487

Product Dimensions and Weight

Product Length: 60.0000MM
Product Width: 40.0000MM
Product Height: 20.0000MM
Product Weight: 1000.0000G
R0
Platform: Various
Release Date: 2020
Genre: Video Upscaler

Notify Me
Add To Wishlist
Add To Compare
Ask a Question

Description

Introduction:

We are proud to offer the RetroTINK-5X Pro, our first FPGA-powered device that introduces a few landmark accomplishments for bridging retro consoles to modern TVs.

The RetroTINK-5X (RT5X) is an advanced video scaler for connecting retro consoles to modern HDTVs. Multiple input options: component, SCART RGB, composite and S-video are accepted. The standard definition processor in the RT5X is capable of decoding NTSC, PAL and PAL-60 formats. The component and RGB ports can digitize analog high definition video up to 720p and 1080i. The custom scaler engine is implemented on a FPGA, enabling low-lag operation with outputs up to 1440p.

Note: Download the user manual here.
Features:

The first automatic optimal phase algorithm to produce the sharpest image with zero adjustments needed beyond selecting the base mode.

The first custom developed FPGA-based Motion Adaptive Deinterlacing algorithm specifically for games to make 480i titles shine without adding lag or flicker.

The first high resolution (1080p and above) video scaler that is capable of covering virtually all analog inputs: composite, S-video, component and RGB out of the box.

Fully compliant CEA-861 standard 1080p modes to maximize compatibility across displays and capture cards.

High quality polyphase scaling at both integer and non-integer factors for sharp pixels without shimmer.

Seamless handling of resolution switches for drop free gaming on titles that switch between 240p and 480i.

Specifications:

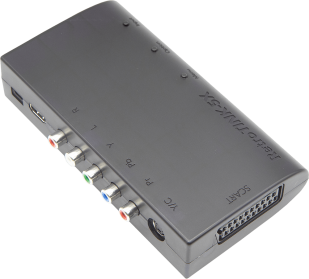

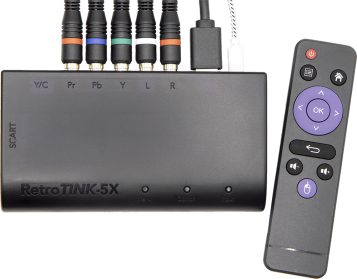

Input Ports: Composite (shared with green RCA jack), S-Video, Component, RGB and Composite on SCART connector
Output Port: Digital Video to HDTV
Source Resolutions: 240p/480i, 288p/576i, 480p, 720p*, 1080i*
Output Resolutions: 480p, 720p, 768p, 1080p, 1200p, 1440p°
Input Filtering: Selectable low-pass filter for noise reduction

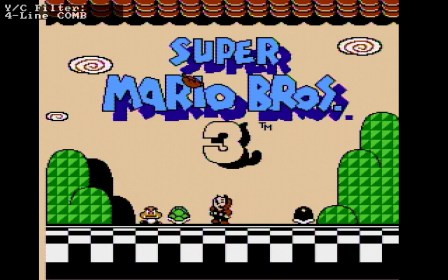

Composite and S-Video Standards: NTSC, PAL, PAL-60, composite video is decoded with a high-quality comb filter to minimize dot artifacts or a notch filter for a vintage look
Decoder: High quality comb filter that minimizes composite artifacts or notch filter for a vintage look.

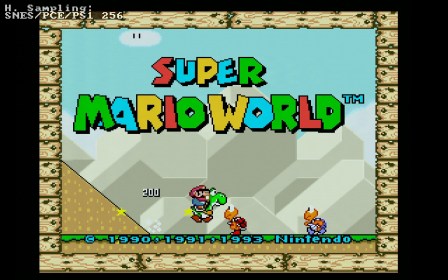

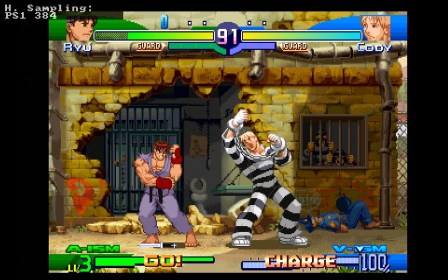

Optimal Sampling Modes: SNES/TG16 256, Genesis/Saturn/PS1 320, NEOGEO 320, N64 386, Saturn 352, PS1 384 in 240p. 288p counterparts to be added later.
Scaler: Polyphase interpolation (Bilinear Sharp and Bilinear)
Deinterlacer: Motion Adaptive, Weave, Bob, Blend, CRT simulation
Scanline Generation: Multiple types, adjustable intensity
Latency: ~0.25 frames in Framelock, 0.25 to 1.25 frames in Triple Buffering
Power: < 800 mA over microUSB

Note:

*720p and 1080i inputs are chroma limited. All other input resolutions preserve the full original chroma bandwidth. 1080i inputs use 'Bob' deinterlacing, 480i/576i inputs can utilize all deinterlacer modes.

°Not all TVs/displays will be compatible with 1440p. The RetroTINK-5X Pro uses 1920 x 1440p CVT reduced blanking timings. 1440p mode is only available for 240p/480i/480p sources.
Specifications:

Platform: Various
Release Date: 2020
Genre: Video Upscaler
